JOKER SPORTSFIELD HARROW

EASY. VERSATILE.

The machine for all your surfaces: turf, mineral, synthetic, …

The machine for your natural. mineral. synthetic.

The basic model and its interchangeable attachments enable you to service turf, mineral and synthetic surfaces.

The harrow is a highly valued tool for the care of sports facilities without resorting to pesticide use.

Various widths are available: 2.10 m, 1.80 m, 1.50 m or 1.20 m.

We also offer wider versions for golf course and racecourse maintenance (3.60 m or 4.60 m).

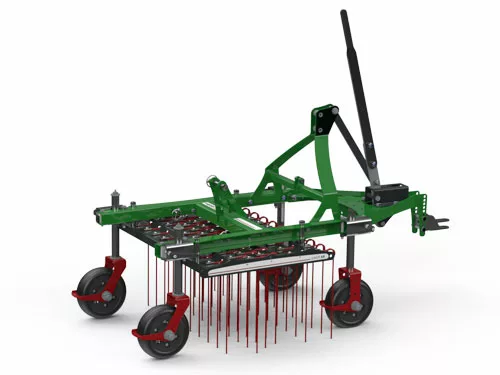

For smaller areas, discover a 0.80 m version, the Joker XS.

For customized solutions, do not hesitate to contact us.

References

With decades of experience as a service provider in the field of sports floors, Hege has been able to engineer a machine with unmatched benefits, satisfying hundreds of users. The following are some of our references.

Parks

Versailles
Château de Versailles
Palais de l'Elysée
Palais de l'Elysée
Brittany American Cemetary
Toulouse
Toulouse

STADIUMS

Bayern - Munich
Toulouse Club Football
Toulouse
Strasbourg
Strasbourg
stade charléty
Stade Charléty - Paris

LANDSCAPERS

Features

An brief overview of its features

  • Disintegrates worm castings, improving the lawn’s evenness.
  • Pulls out grasses with a shallow root system.
  • Uproots thatch and moss by pulling out unwanted vegetation.
  • Enables oxygen and nutrients to better seep into the soil.
  • Improves the compliance and evenness of stabilized surfaces.
  • Eliminates undesirable vegetation.
  • Mechanical weed control on low-graded mineral surfaces (stabilized, shale, cinder, gravel, etc.).
  • Decompacts the aggregate of synthetic fields improving their compliance and permeability.
  • Restores the fibers to an upright position.

Key features

  • Easy, precise adjustment of the aggressiveness of the spring-loaded teeth, by operating the push bars.
  • Suitable for operating in wet conditions.
  • Narrow tine spacing: 4.6 mm
  • Steerable gauge wheels for convenient, track-free handling.

Documentation

Download the brochure

To download

DOCUMENTATION

Brochure : Maintenance of urban spaces

To download

NEW

Seeder Assembly product sheet

To download

DOCUMENTATION

Available attachments

KIT PEIGNE
2-position setting: rigid or floating.

Kit désherbage

MECHANICAL WEEDKILLER KIT
Pesticide-free weeding of mineral surfaces.

Brosse

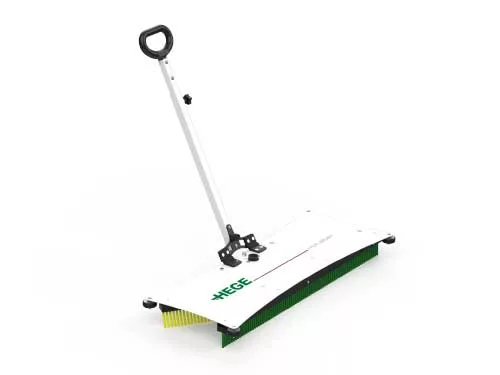

BRUSH KIT
Levelling and brushing work.

kit rouleau

NEW: ROLLER ASSEMBLY

Improves soil evenness in the winter months.

Firms the surface when reseeding.

FRONT ASSEMBLY

Allows the machine to be attached to the front of the tractor.

Breaks up worm castings before the wheels pass over.

kit semoir

KIT SEMOIR
Pneumatic seed drill, 120-litre capacity. 12 V power supply.

Kit bordure

EDGE KIT
To be attached to the weeding kit.

FRONT WHEEL KIT

Follows the contours of the ground to ensure even work across the entire surface.

timon mécanique

TRACTION AXLE
3-point mechanical, for vehicles not equipped with hydraulic lift arms.

timon hydraulique

TRACTION AXLE
3-point hydraulic, for vehicles not equipped with hydraulic lift arms.

support de rangement

STORAGE RACK FOR THE DIFFERENT ASSEMBLIES

Technical benefits

Roue farmflex

MAINTENANCE-FREE FARMFLEX® WHEELS
Swivel for easy maneuvering. Tire scrapers.

Dents

HIGH EFFICIENCY
184 teeth/m². The vertical tines produce a vibratory forward/backward movement. An easy calibration of the tines’ level of attack.

TOOTH DIAMETER

D5: Multi-purpose tines for routine maintenance, used on natural grass, synthetic or mineral surfaces.

D6: Faster weeding and levelling on natural turf.

D7: Used for renovation of natural grass surfaces.

Attelage

3-POINT HITCH
Category 1 for hydraulic lift.

Technical specifications

Joker 2100

Joker 2100 D5

Operating width 2.10 m
  • Height : 0.84 m
  • Length : 1.34 m
  • ø Lifting arm coupling pin : Cat 1 (22 mm)
  • ø 3-point hitch : Cat 1 (19 mm)
  • Machine weight : 135 kg
  • Tine count on the rake: 221
  • Tine count on the rear module: 37
  • Tine spacing: 4.6 mm
  • Minimum power requirement: 30 HP
  • Number of knives on weeding kit: 13
Joker 1800

Joker 1800 D5

Operating width 1,80 m
  • Height : 0.84 m
  • Length : 1.34 m
  • ø Lifting arm coupling pin : Cat 1 (22 mm)
  • ø 3-point hitch : Cat 1 (19 mm)
  • Machine weight : 135 kg
  • Tine count on the rake: 189
  • Tine count on the rear module: 31
  • Tine spacing: 4.6 mm
  • Minimum power requirement: 30 HP
  • Blade count on the mechanical weed control assemblay: 11
Joker 1500

Joker 1500 D5

Operating width 1.50 m
  • Height : 0.84 m
  • Length : 1.34 m
  • ø Lifting arm coupling pin : Cat 1 (22 mm)
  • ø 3-point hitch : Cat 1 (19 mm)
  • Machine weight : 98 kg
  • Tine count on the rake: 157
  • Tine count on the rear module: 27
  • Tine spacing: 4.6 mm
  • Minimum power requirement: 20 HP
  • Blade count on the mechanical weed control assemblay: 9
Joker 1200

Joker 1200 D5

Operating width 1.20 m
  • Height : 0.84 m
  • Length : 1.34 m
  • ø Lifting arm coupling pin : Cat 1 (22 mm)
  • ø 3-point hitch : Cat 1 (19 mm)
  • Machine weight: 78 kg
  • Tine count on the rake: 125
  • Tine count on the rear module: 23
  • Tine spacing: 4.6 mm
  • Minimum power requirement: 15 HP
  • Blade count on the mechanical weed control assemblay: 7

Joker 1000 D5

Operating width 1,00 m
  • Height : 0.84 m
  • Length : 1.34 m
  • ø Lifting arm coupling pin : Cat 1 (22 mm)
  • ø 3-point hitch : Cat 1 (19 mm)
  • Machine weight: 63 kg
  • Tine count on the rake: 103
  • Tine count on the rear module: x
  • Tine spacing: 4.6 mm
  • Minimum power requirement: 15 HP
  • Blade count on the mechanical weed control assemblay: 6
Joker 2100

Joker 2100 D6

Operating width 2.10 m
  • Height : 0.84 m
  • Length : 1.34 m
  • ø Lifting arm coupling pin : Cat 1 (22 mm)
  • ø 3-point hitch : Cat 1 (19 mm)
  • Machine weight: 153 kg
  • Number of teeth on main plate: 188
  • Distance between teeth: 5 mm
  • Minimum power requirement: 35 HP
Joker 1800

Joker 1800 D6

Operating width 1,80 m
  • Height : 0.84 m
  • Length : 1.34 m
  • ø Lifting arm coupling pin : Cat 1 (22 mm)
  • ø 3-point hitch : Cat 1 (19 mm)
  • Machine weight: 140 kg
  • Tine count on the main rake: 161
  • Distance between teeth: 5 mm
  • Minimum power requirement: 30 HP
Joker 1500

Joker 1500 D6

Operating width 1.50 m
  • Height : 0.84 m
  • Length : 1.34 m
  • ø Lifting arm coupling pin : Cat 1 (22 mm)
  • ø 3-point hitch : Cat 1 (19 mm)
  • Machine weight: 132 kg
  • Number of teeth on main plate: 133
  • Distance between teeth: 5 mm
  • Minimum power requirement: 25 HP
Joker 1200

Joker 1200 D6

Operating width 1.20 m
  • Height : 0.84 m
  • Length : 1.34 m
  • ø Lifting arm coupling pin : Cat 1 (22 mm)
  • ø 3-point hitch : Cat 1 (19 mm)
  • Machine weight: 123 kg
  • Number of teeth on main plate: 107
  • Distance between teeth: 5 mm
  • Minimum power requirement: 25 HP

Joker 1000 D6

Operating width 1,00 m
  • Height : 0.84 m
  • Length : 1.34 m
  • ø Lifting arm coupling pin : Cat 1 (22 mm)
  • ø 3-point hitch : Cat 1 (19 mm)
  • Machine weight: 119 kg
  • Number of teeth on main plate: 89
  • Distance between teeth: 5 mm
  • Minimum power requirement: 20 HP
Joker 2100

Joker 2100 D7

Operating width 2.10 m
  • Height : 0.84 m
  • Length : 1.34 m
  • ø Lifting arm coupling pin : Cat 1 (22 mm)
  • ø 3-point hitch : Cat 1 (19 mm)
  • Machine weight: 163 kg
  • Number of teeth on main plate: 166
  • Distance between teeth: 5.5 mm
  • Minimum power requirement: 40 HV
Joker 1800

Joker 1800 D7

Operating width 1,80 m
  • Height : 0.84 m
  • Length : 1.34 m
  • ø Lifting arm coupling pin : Cat 1 (22 mm)
  • ø 3-point hitch : Cat 1 (19 mm)
  • Machine weight: 145 kg
  • Number of teeth on main plate: 141
  • Distance between teeth: 5.5 mm
  • Minimum power requirement: 35 HP
Joker 1500

Joker 1500 D7

Operating width 1.50 m
  • Height : 0.84 m
  • Length : 1.34 m
  • ø Lifting arm coupling pin : Cat 1 (22 mm)
  • ø 3-point hitch : Cat 1 (19 mm)
  • Machine weight: 137 kg
  • Number of teeth on main plate: 117
  • Distance between teeth: 5.5 mm
  • Minimum power requirement: 30 HP
Joker 1200

Joker 1200 D7

Operating width 1.20 m
  • Height : 0.84 m
  • Length : 1.34 m
  • ø Lifting arm coupling pin : Cat 1 (22 mm)
  • ø 3-point hitch : Cat 1 (19 mm)
  • Machine weight: 128 kg
  • Number of teeth on main plate: 94
  • Distance between teeth: 5.5 mm
  • Minimum power requirement: 25 HP

Joker 1000 D7

Operating width 1,00 m
  • Height : 0.84 m
  • Length : 1.34 m
  • ø Lifting arm coupling pin : Cat 1 (22 mm)
  • ø 3-point hitch : Cat 1 (19 mm)
  • Machine weight: 124 kg
  • Number of teeth on main plate: 76
  • Distance between teeth: 5.5 mm
  • Minimum power requirement: 20 HP

French Manufacturing

France

Proud to offer you French-made machines, we pay particular attention to quality in the choice of materials and the manufacturing process. The machines are fabricated in our workshops in Alsace. We strive to create reliable and easy-to-use products. Customized solutions are possible for specific needs. The raw materials are mainly sourced in Germany, France and Italy.
